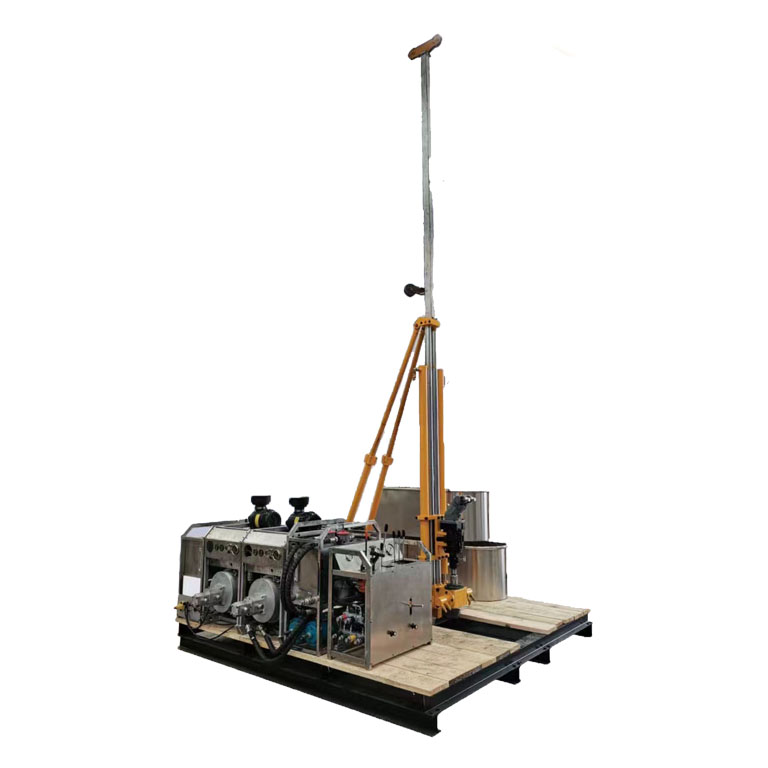

MX1000 Portable Fully Hydraulic Core Exploration Drilling Rig

PRODUCT PARAMETERS

Product Description: The MX1000 Portable Full Hydraulic Core Exploration Drilling Rig is a high-performance core drilling equipment designed for geological survey, mineral exploration, geothermal well drilling and other deep core sampling operations. It adopts full hydraulic drive, strong power, compact structure, high torque and deep drilling ability, suitable for complex terrain and harsh environment, and can meet the needs of high precision and high efficiency core collection.

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

Product Features

Powerful power system
Engine: Standard 132kW turbocharged diesel engine of well-known brand.
Hydraulic drive: full hydraulic control, stable power output and high operating efficiency.
Reasonable power distribution: independent hydraulic oil pump design, scientific power distribution.
Excellent drilling capability
Maximum drilling depth: 1000 meters
Maximum drilling diameter: 400mm
Adaptable stratum: rock layer, sand layer, pebble layer, weathered rock and other complex geological environments.
High-torque hydraulic power head: High-torque power head provides stable drilling output.
Modular and portable design
Compact body: small size, easy to be transported and handled.
Modular design: the equipment can be disassembled, which is suitable for remote mountainous areas and highland operations.
Removable tracked undercarriage: enhanced mobility and adaptability to complex terrain.
High-strength structure and durability
High-strength hydraulic drilling tower: hydraulic lifting structure, strong impact resistance.
Durable chassis: professional excavator crawler chassis, strong wear resistance.
Thickened protection sleeve for hydraulic oil pipe, improving durability.
High-efficiency hydraulic system
Hydraulic system pressure: up to 50MPa, sufficient power.
Hydraulic cooling system: built-in hydraulic oil cooling device, no overheating for long time operation.
Stabilizing legs: hydraulic legs, quick leveling equipment, increase operational stability.
Safety and convenience
Centralized control panel, one-key operation, reducing the difficulty of operation.
Automatic limit protection device prevents misoperation and ensures construction safety.
Adjustable speed power head, adapting to different stratum operation.

Product Advantages

Powerful: 132kW turbocharged diesel engine with stable output.
Deep drilling: maximum drilling depth up to 1000 meters, suitable for deep core exploration.
Modular and portable design: detachable structure, suitable for remote and complex terrain.
Fully hydraulic control: hydraulic system controls propulsion, rotation, lifting, convenient operation.
High durability: high-strength hydraulic drilling tower and professional tracked chassis, adaptable to harsh environments.
Low maintenance cost: independent hydraulic oil pump design reduces maintenance frequency.

Applicable fields

Mineral resources exploration: metal ore, non-metal ore, coal exploration
Geological survey: hydrogeology, engineering geology, environmental geology survey
Geothermal energy development: geothermal well drilling
Foundation Engineering Survey: Bridge, Highway, Railway Foundation Survey
Scientific research projects: core sampling and laboratory research

Product Parameters

Parameters	MX1000 Portable Fully Hydraulic Core Exploration Drilling Rig
Maximum drilling depth	1000m
Maximum drilling diameter	400mm
Maximum torque of power head	15000 N·m
Power head speed	0-150rpm（Three-speed adjustable）
Engine power	132kW turbocharged diesel
Hydraulic system pressure	50MPa
Push cylinder stroke	3.8m
Diameter of drill pipe	89mm / 102mm / 114mm
Chassis type	Removable track undercarriage
Weight	7200kg
Transportation dimensions	4800mm×2100mm×2400mm

FAQs

What types of products can we offer?

1.Water Well Drilling Rig

Applications: Designed for drilling water wells in various geological conditions (soft soil, sand, gravel, and hard rock).
Features:
- Compatible with air compressors or mud pumps for efficient drilling in diverse terrains.
- High mobility with trailer/truck-mounted configurations for remote site access.
- Typical drilling depth: 100–500 meters, adaptable to regional requirements.
Advantages: Energy-efficient, user-friendly controls, and modular design for easy maintenance.

2. Core Drilling Rig

Applications: Geological exploration (metal/non-metal mineral surveys), hydrogeological studies, and oil/gas field exploration.
Features:
- Rope coring technology for precise sample extraction.
- Hydraulic systems for stable operation in challenging environments.
- Drilling diameter: 50–150 mm; depth up to 1,000 meters.
Advantages: High core recovery rate, low vibration, and compatibility with wireline drilling systems.

3. DTH (Down-the-Hole) Drilling Rig

Applications: Ideal for hard rock formations in mining, quarrying, and geothermal projects.
Features:
- Pneumatic hammer drills for rapid penetration.
- Adjustable air pressure (1.7–3.5 MPa) and customizable hole diameters (102–114 mm).
- Supports depths up to 300 meters.
Advantages: Reduced deviation, high drilling speed, and minimal wear on tools.

4. HDD (Horizontal Directional Drilling) Rig

Applications: Underground pipeline/utility installation without trenching, suitable for urban areas and river crossings.
Features:
- GPS-guided steering systems for precision.
- Torque capacity: 10,000–30,000 Nm; pullback force up to 200 tons.
- Drilling length: 100–2,000 meters.
Advantages: Environmentally friendly, minimal surface disruption, and adaptable to varying soil types.

5. Excavator Mounted Drilling Rig

Applications:

Mining and Quarry Drilling:Efficient for blast hole drilling in open-pit mines, quarries, and aggregate extraction sites.

Slope Stabilization and Anchoring:Ideal for drilling anchor holes on slopes, embankments, and landslide-prone areas to install rock bolts and soil nails.

Foundation and Piling Work：Used for drilling foundation holes in urban construction, bridges, retaining walls, and infrastructure projects.

Feature:Easily converts your excavator into a powerful and flexible drilling rig for rock, soil, and foundation applications.

Key Selling Points:

Compliance: Meets international standards (ISO, CE) and adapts to local regulations (e.g., EU VAT, environmental policies).

Customization: Tailored configurations (e.g., crawler/wheel-mounted) to meet project-specific needs .

After-Sales Support: 24/7 technical assistance, regional service centers, and extended warranty options .

What logistics do we ship through?

We offer high-efficiency logistics solutions and secure delivery of heavy-duty drilling equipment. Here’s how we handle shipments:

Support EXW, FOB, CIF, DDP, etc., tailored to your needs.

Transportation Options

Sea Freight: Cost-effective for large machines (e.g., rigs exceeding 10 tons). Suitable for long-distance international shipments. Delivery time: 25–45 days1.

Air Freight: Fast-track delivery for urgent orders or spare parts. Delivery time: 3–10 days1.

Land Freight: Ideal for regional deliveries (e.g., within Asia or Europe). Includes truck or rail transport.

Multimodal Solutions: Combined sea/air/land transport for optimized cost and efficiency.

Packaging & Safety

Heavy machinery is securely packed with steel frames, weatherproof wooden crates, and anti-rust treatments1.

Fragile components (e.g., hydraulic systems) are individually padded and labeled.

Customs & Documentation

We provide full export documentation (commercial invoice, packing list, COO, etc.) and assist with customs clearance globally.

Delivery Assurance

Real-time tracking: Monitor shipments via our logistics platform.

Insurance coverage: Optional all-risk insurance for high-value equipment.

Flexible Trade Terms

Can it be customized as per our requirements?

MX843B One-piece open-pit drilling truck

Yes, mechanical equipment can be fully customized to meet your specific requirements. Here’s a structured overview:

1. Customization Scope

Functional Adaptations: Tailored to your operational needs (e.g., power output, precision, automation level) .
Design Modifications: Adjustments in size, material, and ergonomic layout to fit your workspace.
Integration Capabilities: Compatibility with existing systems (e.g., IoT sensors, production line interfaces).

2. Key Benefits

Optimized Efficiency: Custom designs align with your workflow, reducing downtime and energy waste.
Cost Savings: Eliminate unnecessary features while prioritizing critical functionalities.
Competitive Edge: Unique equipment enhances product quality and differentiation in your market.

3. Process Overview

Consultation: Detailed analysis of your needs and operational environment.
Prototyping: 3D modeling and testing to validate design feasibility.
Production: Advanced manufacturing techniques (e.g., CNC machining, laser cutting) ensure precision.
Post-Sale Support: Installation, training, and maintenance services included.

4. Industries Served

Heavy machinery, automotive, aerospace, and precision engineering sectors.

For a tailored solution, collaborate with a specialized manufacturer to discuss technical specifications and project timelines. Let us know your requirements—we’ll handle the rest!
