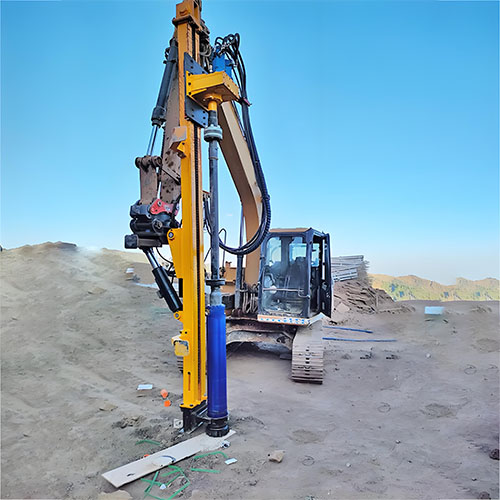

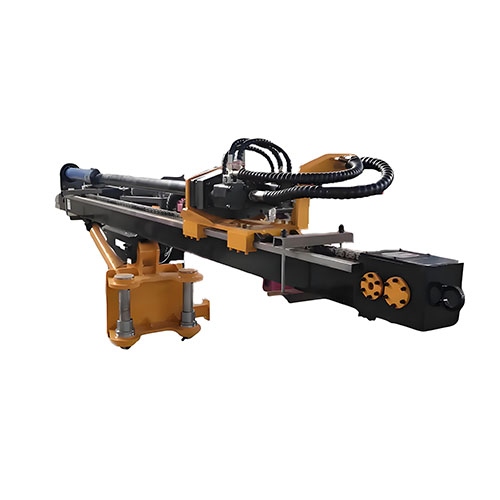

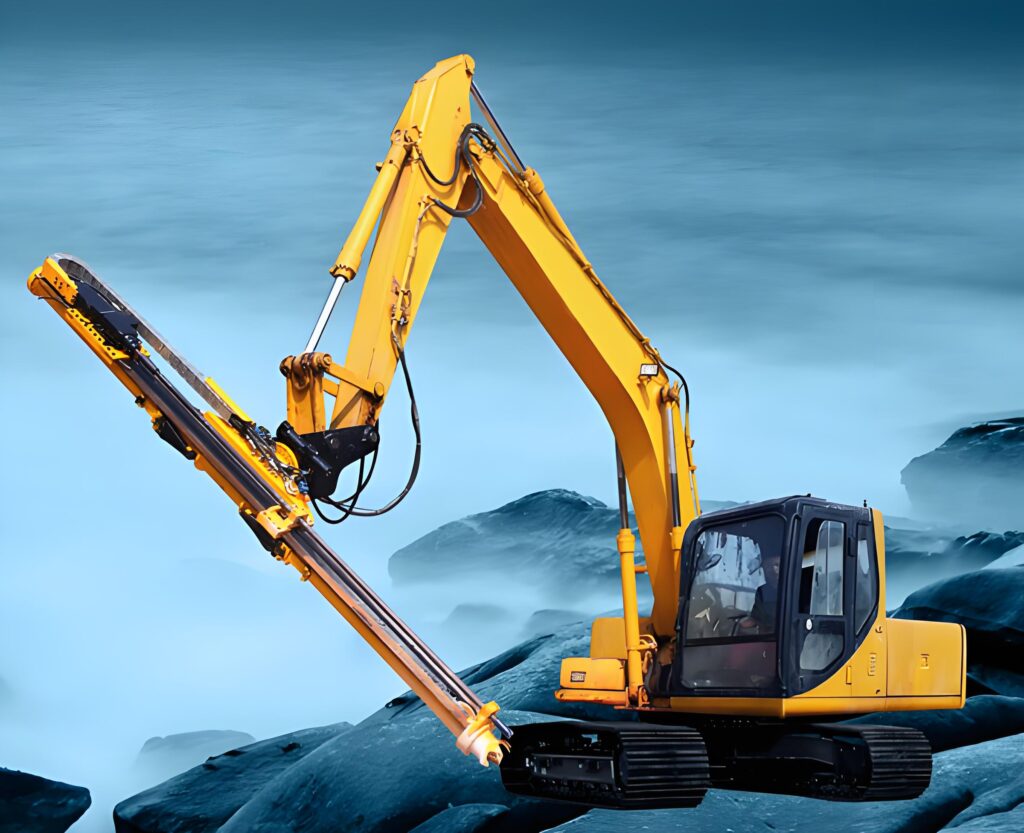

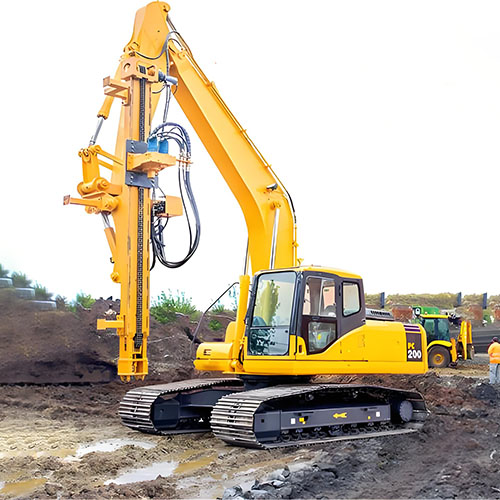

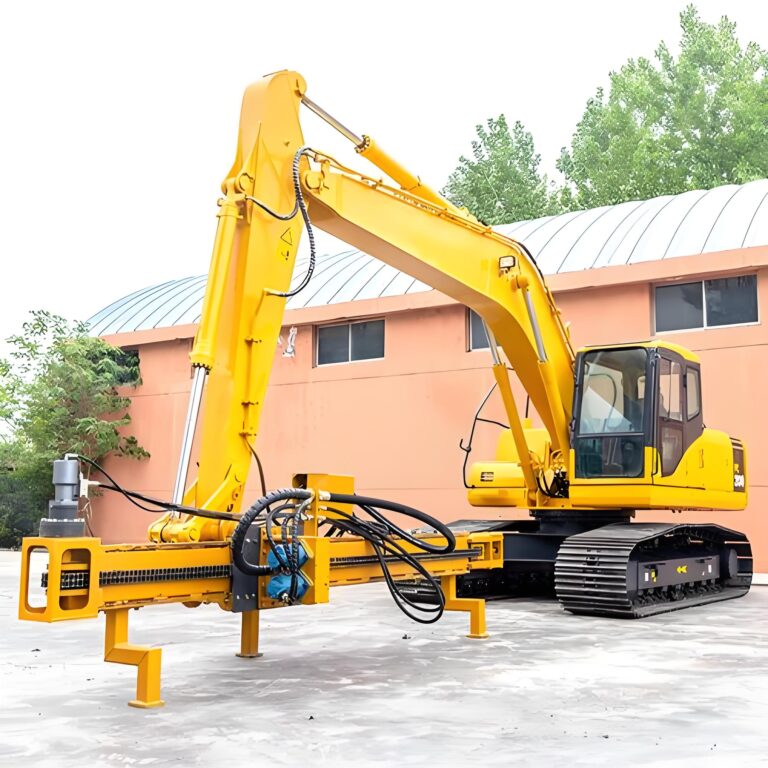

Excavator-Mounted DTH Drilling Rig

PRODUCT PARAMETERS

Product Description： The MX-150 Excavator Rock Drill Rig is a versatile and powerful drilling solution designed to convert standard excavators into efficient rock drilling machines. Featuring a high-torque hydraulic rotary head and compact design, it delivers outstanding performance in mining, construction, and geotechnical projects. Ideal for drilling in confined spaces and tough terrains, the MX-150 ensures precision, durability, and ease of operation for a wide range of applications.

REQUEST A QUOTE

Description

FAQs

Request A Quote

Description

Product Features

Excavator-Mounted Flexibility:Easily attaches to most standard excavators, transforming your machine into a powerful rock drilling rig without the need for additional carriers.

Powerful Rock Penetration:Equipped with a high-torque hydraulic rotary head, the MX-150 delivers strong drilling performance in hard rock, granite, and concrete.

Compact & Efficient Design:Streamlined structure enables operation in confined or rugged terrains such as tunnels, slopes, and mountainous areas.

Versatile Application Range:Ideal for anchoring, blasting, foundation drilling, mining, and slope stabilization across various construction and geological projects.

Application Fields

Mining and Quarrying:Efficient drilling in open-pit mines and stone quarries for blasting and extraction operations.

Slope Stabilization:Used for rock bolting and anchoring in highway embankments, mountain roads, and landslide-prone areas.

Foundation Engineering:Suitable for drilling foundation holes in urban construction, bridges, retaining walls, and civil infrastructure projects.

Tunnel and Underground Works:Compact size makes it ideal for confined drilling operations inside tunnels, subways, and underground chambers.

Product Advantages

Easy Integration with Excavators:No need for special carriers—quickly mounts on most standard excavators for fast deployment.

High Drilling Efficiency:Delivers powerful rock penetration with stable performance in hard formations like granite and basalt.

Versatile Applications:Suitable for mining, slope support, foundation work, and tunnel construction—one machine, multiple uses.

Compact and Mobile Design:Operates efficiently in confined or rugged areas where traditional rigs cannot reach.

Reduced Equipment Investment:Lowers project costs by utilizing existing excavators and minimizing transportation needs.

Product Parameters:

Product Name	Standard Excavator-Mounted DTH Drilling Rig	High-Spec Excavator-Mounted DTH Drilling Rig	Excavator-Mounted Pneumatic Rock Drill	Excavator-Mounted Hydraulic Rock Drill
Model	MX-3500A	MX-75	MX-130	MX-150
Drilling Depth per Pass	3500mm	3500mm	3500mm	3500mm
Total Slide Rail Length	5150mm	5150mm	5150mm	5150mm
Drilling Diameter	50~300mm	50~300mm	40~90mm	40~90mm
Torque	8000N.m	8000N.m	8000N.m	8000N.m
Power Head	420, Dual Motors	420, Dual Motors	MX-90 Pneumatic Rock Drill	MX-38 Hydraulic Rock Drill
Drilling Depth	Ф50-80/depth40-45M Ф80-150/depth30-40M Ф150-200/depth-25M Ф200-300/depth-10M	Ф50-80/depth40-45M Ф80-150/depth30-40M Ф150-200/depth-25M Ф200-300/depth-10M	≤15 M	≤15 M
Pressurization Method	6-Ton Gear Reducer Motor with Chain	10-Ton Gear Reducer Motor with Chain	10-Ton Gear Reducer Motor with Chain	10-Ton Gear Reducer Motor with Chain
Control Method	Excavator Pilot Handle / Wireless Remote	Excavator Pilot Handle / Wireless Remote	Excavator Pilot Handle / Wireless Remote	Excavator Pilot Handle / Wireless Remote
Suitable Excavator Weight	6-36ton	6-36ton	6-36ton	6-36ton

FAQs

What types of products can we offer?

1.Water Well Drilling Rig

Applications: Designed for drilling water wells in various geological conditions (soft soil, sand, gravel, and hard rock).
Features:
- Compatible with air compressors or mud pumps for efficient drilling in diverse terrains.
- High mobility with trailer/truck-mounted configurations for remote site access.
- Typical drilling depth: 100–500 meters, adaptable to regional requirements.
Advantages: Energy-efficient, user-friendly controls, and modular design for easy maintenance.

2. Core Drilling Rig

Applications: Geological exploration (metal/non-metal mineral surveys), hydrogeological studies, and oil/gas field exploration.
Features:
- Rope coring technology for precise sample extraction.
- Hydraulic systems for stable operation in challenging environments.
- Drilling diameter: 50–150 mm; depth up to 1,000 meters.
Advantages: High core recovery rate, low vibration, and compatibility with wireline drilling systems.

3. DTH (Down-the-Hole) Drilling Rig

Applications: Ideal for hard rock formations in mining, quarrying, and geothermal projects.
Features:
- Pneumatic hammer drills for rapid penetration.
- Adjustable air pressure (1.7–3.5 MPa) and customizable hole diameters (102–114 mm).
- Supports depths up to 300 meters.
Advantages: Reduced deviation, high drilling speed, and minimal wear on tools.

4. HDD (Horizontal Directional Drilling) Rig

Applications: Underground pipeline/utility installation without trenching, suitable for urban areas and river crossings.
Features:
- GPS-guided steering systems for precision.
- Torque capacity: 10,000–30,000 Nm; pullback force up to 200 tons.
- Drilling length: 100–2,000 meters.
Advantages: Environmentally friendly, minimal surface disruption, and adaptable to varying soil types.

5. Excavator Mounted Drilling Rig

Applications:

Mining and Quarry Drilling:Efficient for blast hole drilling in open-pit mines, quarries, and aggregate extraction sites.

Slope Stabilization and Anchoring:Ideal for drilling anchor holes on slopes, embankments, and landslide-prone areas to install rock bolts and soil nails.

Foundation and Piling Work：Used for drilling foundation holes in urban construction, bridges, retaining walls, and infrastructure projects.

Feature:Easily converts your excavator into a powerful and flexible drilling rig for rock, soil, and foundation applications.

Key Selling Points:

Compliance: Meets international standards (ISO, CE) and adapts to local regulations (e.g., EU VAT, environmental policies).

Customization: Tailored configurations (e.g., crawler/wheel-mounted) to meet project-specific needs .

After-Sales Support: 24/7 technical assistance, regional service centers, and extended warranty options .

What logistics do we ship through?

We offer high-efficiency logistics solutions and secure delivery of heavy-duty drilling equipment. Here’s how we handle shipments:

Support EXW, FOB, CIF, DDP, etc., tailored to your needs.

Transportation Options

Sea Freight: Cost-effective for large machines (e.g., rigs exceeding 10 tons). Suitable for long-distance international shipments. Delivery time: 25–45 days1.

Air Freight: Fast-track delivery for urgent orders or spare parts. Delivery time: 3–10 days1.

Land Freight: Ideal for regional deliveries (e.g., within Asia or Europe). Includes truck or rail transport.

Multimodal Solutions: Combined sea/air/land transport for optimized cost and efficiency.

Packaging & Safety

Heavy machinery is securely packed with steel frames, weatherproof wooden crates, and anti-rust treatments1.

Fragile components (e.g., hydraulic systems) are individually padded and labeled.

Customs & Documentation

We provide full export documentation (commercial invoice, packing list, COO, etc.) and assist with customs clearance globally.

Delivery Assurance

Real-time tracking: Monitor shipments via our logistics platform.

Insurance coverage: Optional all-risk insurance for high-value equipment.

Flexible Trade Terms

Can it be customized as per our requirements?

MX843B One-piece open-pit drilling truck

Yes, mechanical equipment can be fully customized to meet your specific requirements. Here’s a structured overview:

1. Customization Scope

Functional Adaptations: Tailored to your operational needs (e.g., power output, precision, automation level) .
Design Modifications: Adjustments in size, material, and ergonomic layout to fit your workspace.
Integration Capabilities: Compatibility with existing systems (e.g., IoT sensors, production line interfaces).

2. Key Benefits

Optimized Efficiency: Custom designs align with your workflow, reducing downtime and energy waste.
Cost Savings: Eliminate unnecessary features while prioritizing critical functionalities.
Competitive Edge: Unique equipment enhances product quality and differentiation in your market.

3. Process Overview

Consultation: Detailed analysis of your needs and operational environment.
Prototyping: 3D modeling and testing to validate design feasibility.
Production: Advanced manufacturing techniques (e.g., CNC machining, laser cutting) ensure precision.
Post-Sale Support: Installation, training, and maintenance services included.

4. Industries Served

Heavy machinery, automotive, aerospace, and precision engineering sectors.

For a tailored solution, collaborate with a specialized manufacturer to discuss technical specifications and project timelines. Let us know your requirements—we’ll handle the rest!
